1700 ordm C Sxl64-17nh High Temp. Atmosphere Box Furnace Htcc Melting Furnace for Customization Vertical Place Style

Model NO. : SXL64-17NH

Range of Applications : Industrial

Type : Electric Holding Furnace

Usage : Ceramic Sintering

Fuel : Electric

Effective Chamber Dimensions : 400*400*400mm(W*H*D)

Atmosphere : Nitrogen/Hydrogen

Transport Package : Wooden Package

Specification : 1200*1950*1250mm (W*H*D)

Trademark : Chitherm

Origin : China

HS Code : 8514101000

Supply Ability : Customized

Customization : Available

Certification : ISO

Place Style : Vertical

Place of Origin : China

Brand Name : Chitherm

MOQ : 1

Price : Negotiable

Packaging Details : Customized

Delivery Time : Customized

Payment Terms : Customized

Contact Now

1. Applications:
It is mainly used for the high-temperature co-firing process of alumina substrates and metal pastes (HTCC) in a nitrogen-hydrogen atmosphere.

2. Mainly Specifics:
  1. Rated Temp.: 1600ºC
  2. Max Temp.: 1700ºC
  3. Effective Dimensions: 400 × 400 × 400mm(W×H×D)
  4. Heating Method: U-shaped molybdenum coil
  5. Process Atmosphere: nitrogen/hydrogen (optional humidification function)
  6. Temperature Control Stability: ±1ºC, with PID parameter self-tuning function
  7. Temperature Uniformity: better than ±3ºC (1600ºC insulation 2 small time and space furnace test)
  8. Thermocouple: B Type
  9. Temperature control points:1
  10. Exhaust: One exhaust port with ignition device
  11. Alarm System: over temperature, thermocouple failure and other abnormal conditions will activate sound and light alarm protection, over temperature heating power will turn off automatically
  12. Max Heating Power: 25kW
  13. Insulation Power: ≤15kW
  14. Heating Rate: RT - 1000ºC ≤ 5ºC/min, 1000 - 1600ºC ≤ 2ºC/min
  15. Surface Temperature Rise: < 35ºC
  16. Weight: about 960kg
  17. Furnace Dimensions: about 1200×1950×1250mm (W×H×D);
  18. Appearance Color: light gray.

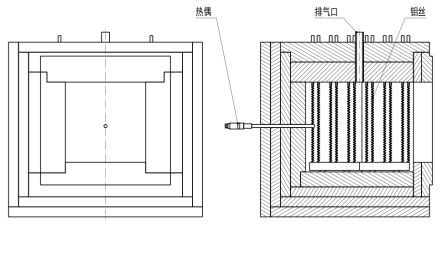

1700 ordm C Sxl64-17nh High Temp. Atmosphere Box Furnace Htcc Melting Furnace for Customization Vertical Place Style
3. Delivery List
Item Note QTY
Basic Compositions Furnace 1 PC
Certificates of Inspection Furnace and major purchased components 1 Set
Technical Documents Furnace specifications, technical documents of major purchased components, etc 1 Set
Key Parts molybdenum wire 1 Set
Dew point meter 1 PC
Temperature Controller 1 Set
Touch screen 1 Set
Vacuum system 1 Set
Oxygen Analyzer 1 Set
Hydrogen alarm instrument 1 Set
Water chiller 1 Set
Spares Heating Elements Molybdenum Coil 4 PC

4. Facility Requirements
1. Environmental conditions: Temperature 0 - 40ºC, humidity ≤ 80% RH, no corrosive gas, no strong
airflow disturbance.
2. Process air conditions: nitrogen, purity 99.999%, air source pressure 0.2 - 0.4Mpa, gas
consumption 3 - 6m3 /h; Hydrogen, purity 99.99%, gas source pressure not less than 0.1Mpa, gas consumption is 3 - 6m3 /h;
3. Power air source conditions: clean, dry, oil-free compressed air, pressure 0.4 - 0.8Mpa;
4. Water Inlet condition: 0.1 - 0.3Mpa, clean, no corrosion, supply flow 2 - 5L/min;
5. Ventilation system: non-contact access to the user pumping system, pumping capacity is greater
than 1.5m3 /h;
6. Ground requirements: level, no obvious vibration, bearing capacity > 200Kg/m2 .
7. Power conditions: capacity greater than 34kVA, 3 phases 5 lines, voltage 220/380V, frequency
50Hz(according to local situation). Live wire: yellow, green, red, neutral wire: blue, ground wire: yellow-green;
8. Installation site: 2500mm×3000mm×2500mm (W×H×D), installation area greater than 5m2.
1700 ordm C Sxl64-17nh High Temp. Atmosphere Box Furnace Htcc Melting Furnace for Customization Vertical Place Style
